凸轮式自动换刀机构

ROTATING AND INDEXING CAM BOX SYSTEM

CNC 加工机、卧式搪铣加工机、雕刻机刀库自动换刀系统是採用滚子凸轮式传动系统，体积小，重量轻，结构简单，祇用一个感应马达驱动来达成换刀臂的全部动作，旋转及上下动作依循固定轨道运转，换刀迅速确实，拥有精密数控凸轮加工专用机及凸轮设计制造软体系统；採用最佳运动曲线设计，配合精准曲线加工，让加减速运转最顺畅。

Wide range of Cam box designs for automatic tool changing, automatic pallet changing and other indexing applications is available. The most products adopted the reliable roller gear Cam mechanisms.

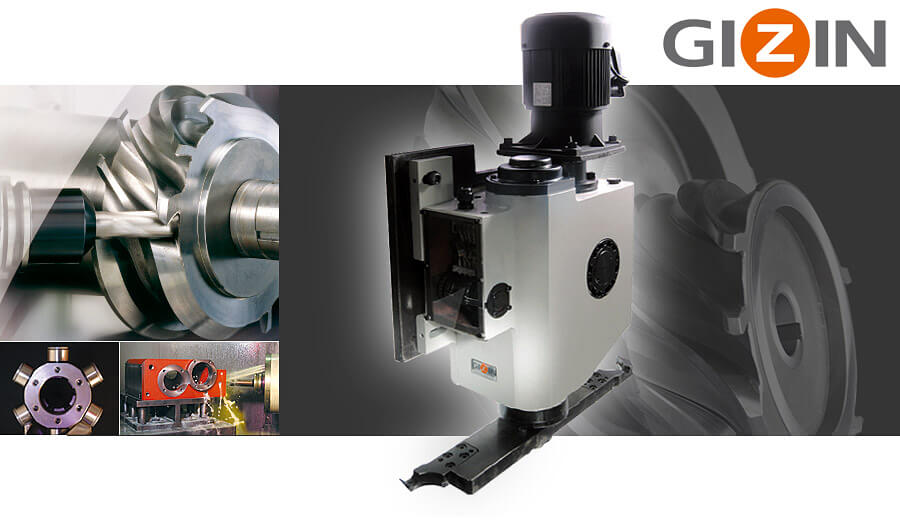

CAM BOX SYSTEM 换刀臂

The compact unit use only a induction motor to achieve the complex movements. Simple, durable and smooth features enhance the productivity of your CNC machines. Cam boxes for tool change the system cycle time from 0.8 sec. to 2.1 sec. according to different applications. No hydraulic system and valves which may reduce maintenance cost and Machine idle time. for Automatic Tool Changer & double column machining center...

SMOOTH AND FAST TOOL CHANGING

To achieve smooth and fast tool changing depend on unique rotating curve of both Cams. Gizin used our own design CNC Cam making machines and software to do all the parts. All roller gear cams adopted Cr-Mo alloy steel through unique machining process and heat treatment. The final precise grinding not only get the close tolerance but also increase life time and running speed.

Durable tool changing the main Roller Gear Cam used Cr-Mo alloy-steel through unique machining,heat treatment and precision ground.To meet the requirement of shorter tool change time. The hardness reached Rockwell HRC 60 degrees with 1mm deepth.
